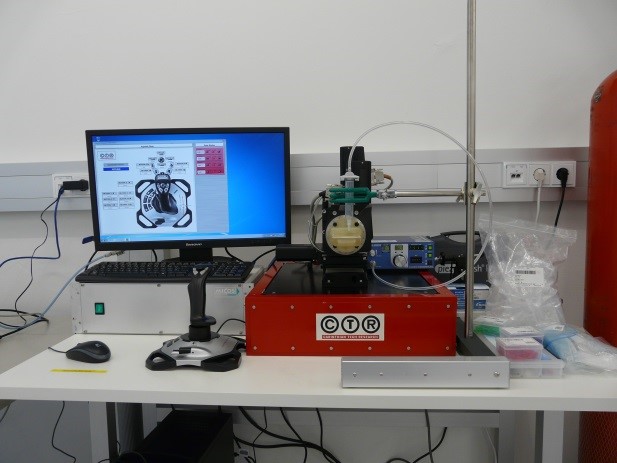

Digital Dispenser

General Description:

Musashi ML-5000 provides excellent dispensing accuracy thanks to integration of diversified sophisticated features including air pulse stabilization circuit. Applicable for underfilling, solder paste dispensing, adhesives, etc.

Key Specifications:

• Discharge pressure setting: Electro/ pneumatic method
• Pneumatic control circuit: Air pulse stabilizing circuit (PAT.)
• Dispense pressure setting: 5.0 - 700.0kPa
• Discharge time setting: 0.010 - 9.999sec. (0.001sec. step)
• Discharge time control circuit: C-MOS IC control digital circuit
• Vacuum pressure setting: 0 - 20.0kPa

Joystick controlled specimen holder stage allows manipulation in x-y-z- and α to an accuracy of 0.01mm
