PACKAGING & ASSEMBLY

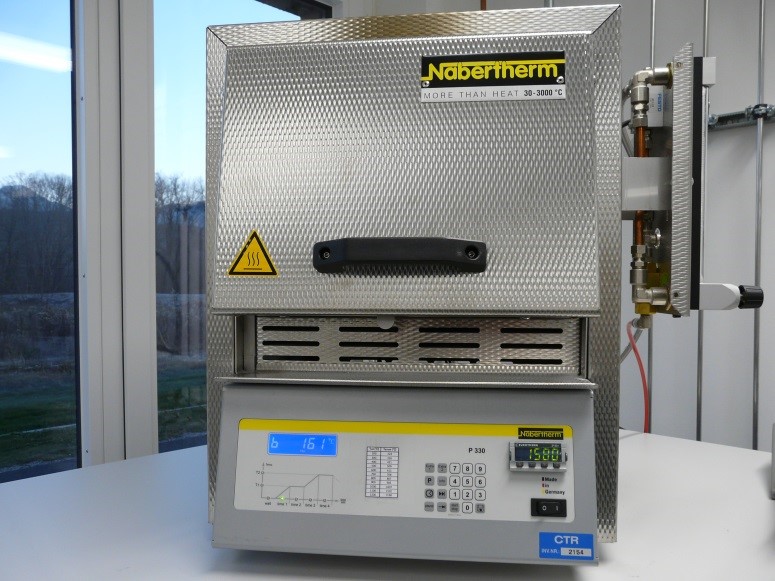

Chamber Oven

(High temperature sintering with temperature profiling)
  • Manufacturer: Nabertherm
  • Model: HTCT 03/16

General Description:

The High Temperature Chamber Oven is designed for thermal processing of small to medium large samples up to 1600 °C. The chamber can achieve fast heating rates (up to 30 °C/min) and allows working under controllable atmosphere using an automatic gas-flow controller.



Key Specifications:

  • Maximal T:                                         1600 °C
  • Heating elements:                             SiC
  • Chamber dimensions:                       120 x 210 x 120 mm
  • Maximal heating range:                     30 °C/min
  • Controlled atmosphere:                     automatic gassing system; calibration for N2
  • Digital PID-temperature control

Availability

Use allowed for all researchers with permission

Location

Environmental Lab
Europastraße 12
9524 Villach

Responsibles / Contact

Dr. Jochen Bardong
Tel.:+43 4242 56300 209
